ECR-Glass Assembled Roving for Thermoplastic

Short Description:

Assembled Roving For Thermoplastics are ideal options for reinforcing many resin systems such as PA, PBT, PET, PP, ABS, AS and PC. Typically designed for twin-screw extrusion process to manufacture thermoplastic granules.Key applications include railway track fastening pieces, automotive parts, elactrical & electronic applications.High permeability with PP resin.

  • Brand name: ACM
  • Place of origin: Thailand
  • Surface Treatment: Silicon Coated
  • Roving type: Assembled roving
  • Technique: Thermoplastic process
  • Fiberglass type: ECR-glass
  • Resin: UP/VE
  • Packing: Standard International Exporting Packing
  • Applications: Automobiles, rail transit, construction, chemicals, electrical appliances and daily necessities etc.
  • Product Detail

    Product Tags

    ECR Glass Assembled Roving For Thermoplastic

    The products are designed to used reinforcing silane size and provide good compatible with matrix resins,excellent abrasion resistance,low fuzz,allowing suoerior Processability and dispersion.

    Products code Filament diameter(μm) Linear Density(tex) Compatible Resin Product features and Application
    EW723R 17 2000 PP 1. Excellent hydrolysis resistance
    2. High Performance, low fuzz
    3. Sfandard product certified to FDA
    4. Good choppability
    5. Good dispersion
    6. Low static
    7. High strength
    8. Good choppability
    9. Good dispersionLow static
    10. Mainly used in automotive, building&construction, truck sheets
    EW723R 17 2400 PP
    EW723H 14 2000 PA/PE/PBT/PET/ABS
    Code Technical Parameters Unit Test Results Testing Standard
    1 Exterior - White, no pollution Version
    2 Filament diameter μm 14±1 ISO 1888
    3 Moisture % ≤0.1 ISO 3344
    4 LOI % 0.25±0.1 ISO 1887
    5 RM N/tex >0.35 GB/T 7690.3-2201
    Pallet N.W(kg) Pallet size(mm)
    Pallet (big) 1184 1140*1140*1100
    Pallet(small) 888 1140*1140*1100


    Unless otherwise specified, fiberglass roving should be stored in a dry and cool place with original package, do not open the package until use. the best storage conditions are at temperatures from 15 to 35℃ and humidity between 35 to 65%. To ensure safety and avoid damage to the product, the pallets should not be stacked more than three layers high, when the pallets are stacked in 2 or 3 layer, care should be taken to correctly and smoothly move the top pallet.

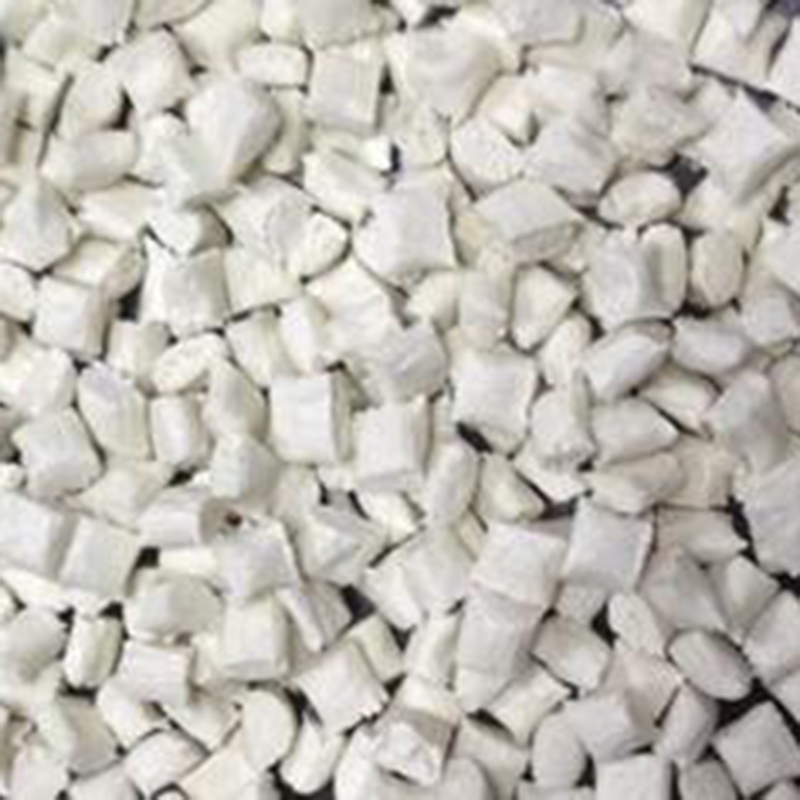

    It is mainly used in twin-screw extrusion molding process to produce thermoplastic pallets, and is widely used in automobile parts, electronic and electrical, and machine tools. Machinery tools, chemical antiseptic, sporting goods, etc.
